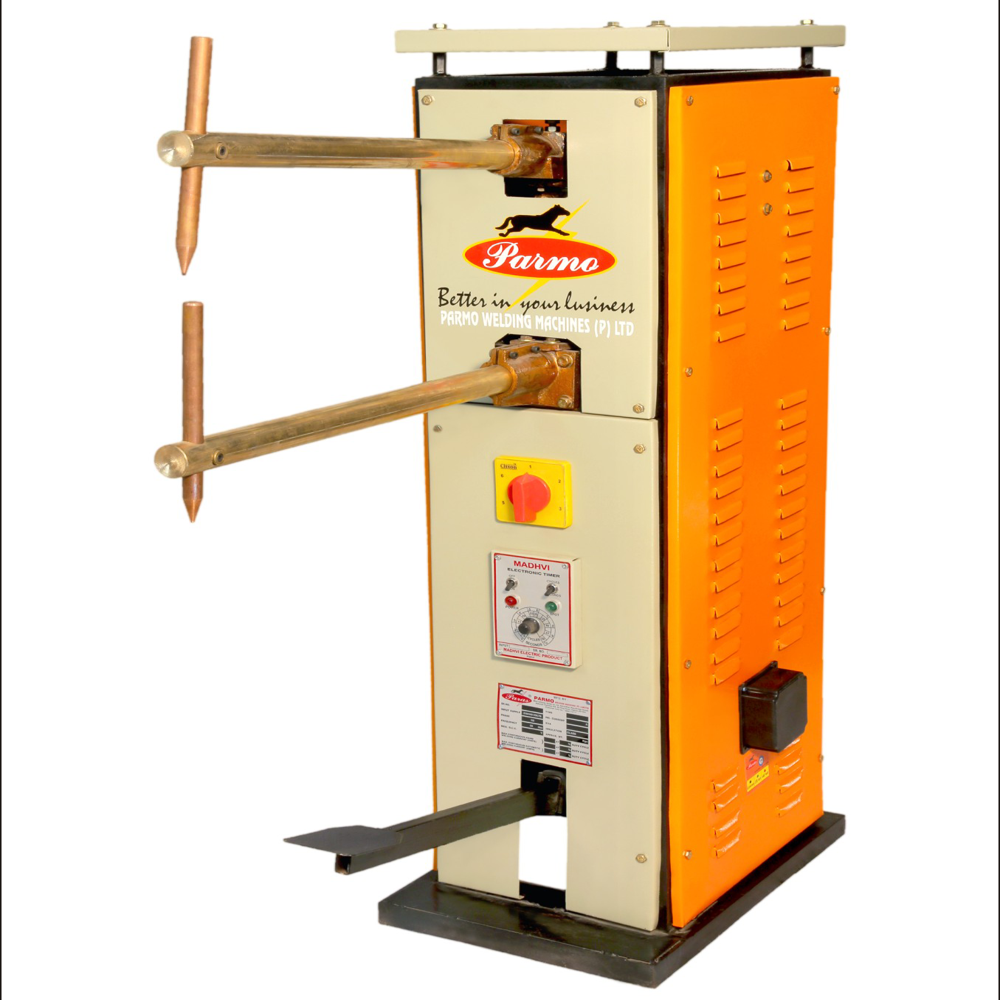

PARMO 10 KVA SPOT WELDING MACHINE

Name: PARMO 10 KVA SPOT WELDING MACHINE
Brand: PARMO WELDING MACHINES PRIVATE LIMITED
Price: 45500.0 INR
Availability: InStock

Price 45500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

PARMO 10 KVA SPOT WELDING MACHINE Specification

Insulation Grade
Class F

Voltage
220/415 V (Single/Three Phase)

Pulse Frequency
Adjustable, up to 100 Hz

Motor Type
Electromagnetic Actuator

Cooling Method
Water Cooled Electrodes

Type
Spot Welding Machine

Dimension (L*W*H)
690 x 340 x 1100 mm

Output Current
Up to 10,000 Amps

Rod Diameter
Up to 12 mm

Arc Current
Max 10,000 Amps

Efficiency
85%

Frequency
50 Hz

Usage
Industrial Sheet Metal Welding

Power
10 KVA

Function
Spot Welding Metal Sheets

Input Current
28-30 Amps

Condition
New

Weight
Approx. 100-120 kg

Welding Area
Up to 2 x 3 mm Sheets

Material
Heavy-duty Steel Body

Duty Cycle
50% at Full Load

Throat Depth
250 mm

Electrode Material
Copper Alloy

Secondary Voltage
2.6 7.9 V

Timer Control
Electronic, Adjustable

Operation Mode
Pedal/Push Button

Max Welding Capacity
Mild Steel up to 3+3 mm

Insulation Resistance
>20 M

Transformer Type
Air Cooled, High Duty Cycle

Cycle Time
Adjustable

About PARMO 10 KVA SPOT WELDING MACHINE

Experience top-tier welding with the PARMO 10 KVA Spot Welding Machine-famed for its reliability in industrial sheet metal applications. This crackerjack spot welder features a heavy-duty steel body, adjustable electronic timer control, and a high-efficiency air-cooled transformer. With a robust copper alloy electrode, easily weld mild steel sheets up to 3+3 mm. Latest adjustable pulse frequency and water-cooled electrodes ensure consistent operation. Shop now and enjoy best-in-class cycle time, superior durability, and seamless integration in both single and three-phase systems. Condition: New.

Highlighting Special Features & Advantages

The PARMO 10 KVA Spot Welding Machine boasts an ergonomic pedal/push button operation and advanced electronic timer control. Its heavy-duty copper alloy electrodes and electromagnetic actuator guarantee precise welding on mild steel up to 3+3 mm thickness. The adjustable cycle time and 50% duty cycle at full load make it ideal for continuous industrial use. Suitable for large and small-scale sheet metal fabrication, this machine maximizes productivity, reliability, and operator safety across various usage types.

Domestic & International Market Exchange and Packaging Value

PARMO 10 KVA Spot Welding Machine holds significant market value in the Indian industrial sector and is a favored choice in main export markets such as the Middle East, Africa, and Southeast Asia. Goods transport and exchange are streamlined via secure, robust packaging designed for optimal protection during transit. These export-quality machines arrive safely, retaining their highest operational standards from factory to end-user, which further enhances their reputation in both domestic and global markets.

FAQ's of PARMO 10 KVA SPOT WELDING MACHINE :

Q: How does the PARMO 10 KVA Spot Welding Machine operate?

A: The machine can be operated using either a pedal or a push-button, offering flexibility for different welding setups. It uses an adjustable electronic timer for precise welding with an air-cooled transformer and water-cooled electrodes.

Q: What materials and thicknesses can this spot welding machine handle?

A: It is designed for industrial sheet metal welding, effectively joining mild steel sheets up to 3+3 mm thickness, with rod diameters up to 12 mm.

Q: Where is the PARMO 10 KVA Spot Welding Machine commonly used?

A: The machine is widely used in industrial settings such as fabrication shops, automotive bodywork, and metal goods manufacturing, suitable for both domestic and export applications.

Q: What are the advantages of its adjustable timer and pulse frequency?

A: The adjustable electronic timer and pulse frequency enable greater control over the welding process, helping to optimize weld quality and adapt to a variety of material thicknesses and production demands.

Q: How is the machine packaged for safe delivery and goods transport?

A: Each unit is packed in robust, industrial-grade materials that safeguard the machine during transport, ensuring it reaches the destination without damage and maintains its market value.
