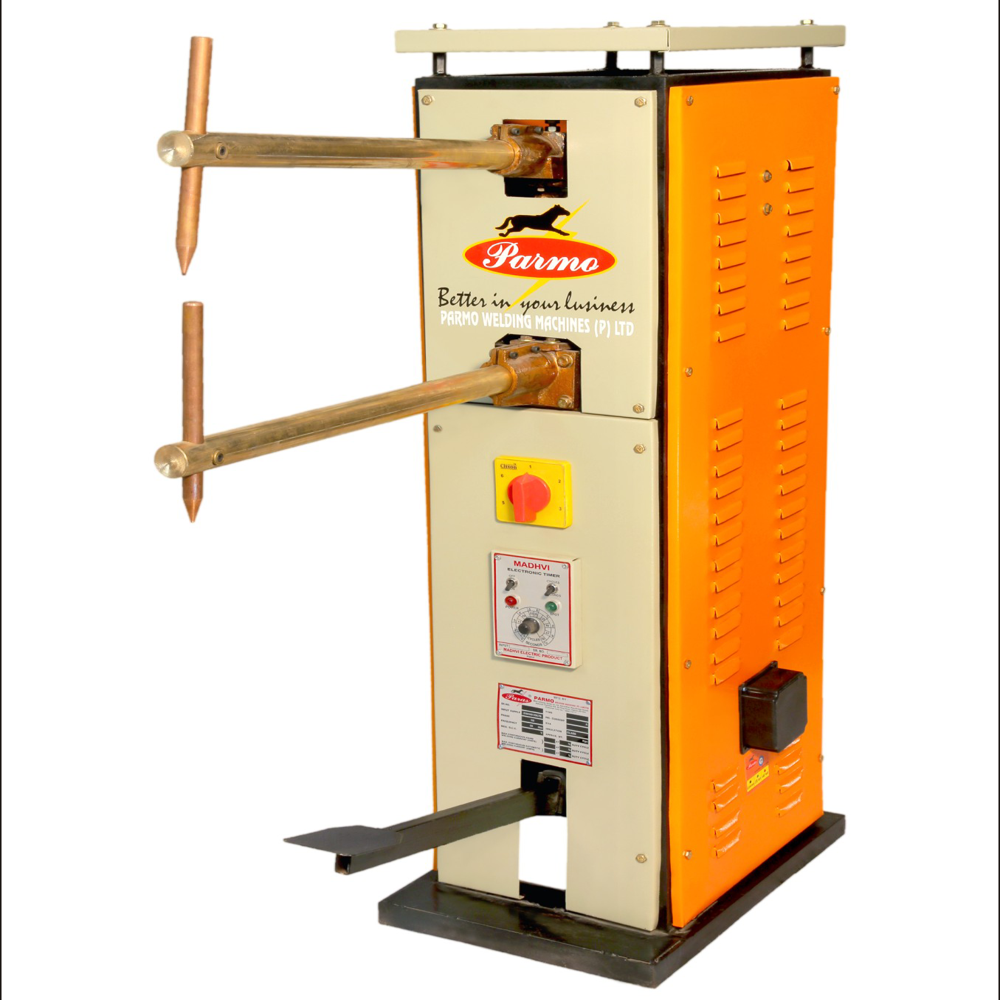

10kva Heavy Duty Spot Welding Machine Without Timer

Send Inquiry

Request To Call Back

10kva Heavy Duty Spot Welding Machine Without Timer

Name: 10kva Heavy Duty Spot Welding Machine Without Timer
Brand: PARMO WELDING MACHINES PRIVATE LIMITED
Price: 34000.0 INR
Availability: InStock

Price 34000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

10kva Heavy Duty Spot Welding Machine Without Timer Specification

Motor Type
AC Induction

Rod Diameter
Up to 8 mm

Power
10 KVA

Cooling Method
Air Cooled / Water Cooled (Optional)

Welding Area
5 mm to 8 mm thickness

Function
Manual Spot Welding

Type
Heavy Duty Spot Welding Machine

Dimension (L*W*H)
950 mm x 450 mm x 1100 mm

Weight
Approx. 120 Kg

Output Current
Up to 15,000 Amps

Arc Current
Up to 15,000 Amps

Usage
Spot Welding of Mild Steel Sheets, Steel Rods etc.

Input Current
Up to 25 Amps

Condition
New

Insulation Grade
F

Efficiency
85%

Frequency
50 Hz

Voltage
415 V

Material
Mild Steel

Transformer Type
Heavy Coiled Transformer

Welding Arm Length
350 mm

Electrode Material
Copper Alloy

Finish
Powder Coated Body

Electrode Force
Up to 250 Kg

Timer
Without Timer

Control
Manual

Operation Mode
Foot Operated

Phase
Three Phase

Mounting
Floor Mounted

Surface Treatment
Anti-Corrosive Coating

About 10kva Heavy Duty Spot Welding Machine Without Timer

10kva Heavy Duty Spot Welding Machine Without Timer

Weight	120 Kilograms (kg)
Usage	M.s, S.s, C.r.c, Etc.
Input Current	220/415V
Output Current	10kva Volt (v)
Condition	New
Type	spot welding machine
Cooling Method	Air cooling
Frequency	50 Hertz (HZ)
Power	220/415 Volt (v)
Voltage	220/415 Volt (v)
Payment Terms	Cash in Advance (CID)
Supply Ability	1 Per Day
Delivery Time	1 Days
Packaging Details	Free Packing.Shipping cost will be extra
copper	100%
Main Domestic Market	All India
Product Unit	1 Piece/Pieces
Pkg Box Height	48.00 in
GSTIN	18%
MRP	34000.00 INR
Stock Quantity	100
Moq	1
Price Type	fixed
Price	34000.00 INR (Approx.)
Currency	INR
Pkg Box Length	18.00 in
Unit Type	Piece/Pieces
Brand Name	parmo
Weight	100.00 Kilogram
Shipping Type	free
Pkg Box Breadth	18.00 in
Mop	1
Returnable	No
Packsize	1
Minimum Order Quantity	1

High-Efficiency Welding Performance

Designed for demanding industrial tasks, this spot welding machine boasts an efficiency of up to 85%. Its heavy coiled transformer and copper alloy electrode deliver powerful, consistent welds on materials ranging from 5 mm to 8 mm thickness. The manual and foot-operated mechanism ensures precise operator control for each weld, ideal for those needing flexibility during use.

Built for Durability and Safety

Featuring a powder-coated, anti-corrosive body and floor-mounted installation, this machine offers long-term durability even in intensive production environments. The air or optional water cooling maintains optimal operation temperature while the insulation grade F and robust construction ensure operator safety during heavy-duty projects.

FAQ's of 10kva Heavy Duty Spot Welding Machine Without Timer:

Q: How is the welding process controlled on this spot welding machine without a timer?

A: The welding process is controlled manually by the operator using a foot pedal. Since the machine lacks an automated timer, the duration and consistency of the weld depend on the operator's input, allowing for flexible control of welding cycles.

Q: What types of materials can be welded with this heavy duty spot welding machine?

A: This machine is primarily suitable for spot welding mild steel sheets and steel rods up to 8 mm in diameter. The robust design and high arc current make it effective for various steel components within this thickness range.

Q: When is it best to use a spot welding machine without a timer?

A: A timerless spot welding machine is ideal in situations where the operator needs to adjust weld times manually for different material thicknesses or when high flexibility during the welding process is required.

Q: Where can this welding machine be installed and used safely?

A: The machine is designed for floor mounting and should be installed in a well-ventilated, industrial workspace with access to a three-phase 415V electrical supply. Its anti-corrosive and powder-coated finish ensures reliability in demanding environments.

Q: What is the benefit of a copper alloy electrode in this welding machine?

A: Copper alloy electrodes provide excellent thermal and electrical conductivity, enhancing welding efficiency and durability. They help maintain consistent weld quality and extend the lifespan of the electrode, making them ideal for heavy-duty spot welding.

Q: How does the cooling system function to protect the machine?

A: The machine is equipped with an air-cooled system as standard, with an optional water-cooled upgrade available. This prevents overheating during extended operation, ensuring both the longevity of internal components and the safety of users.
