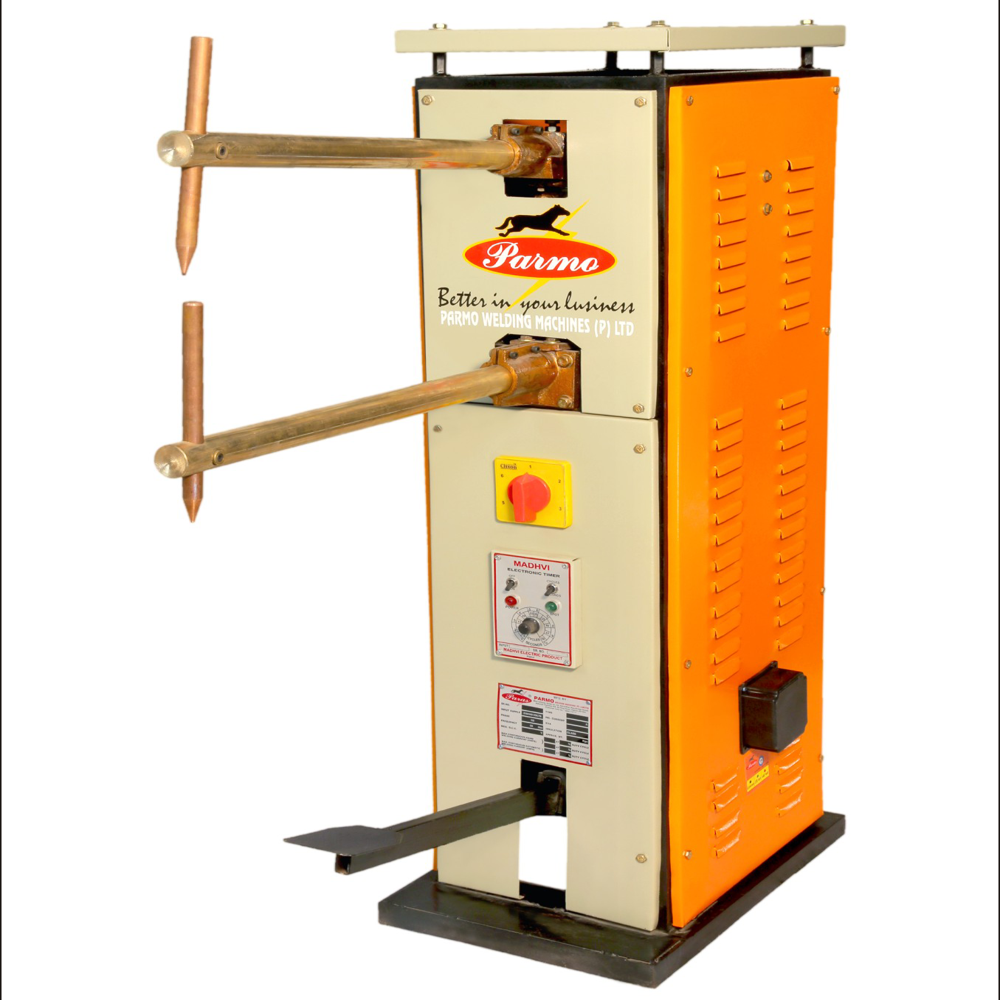

10 KVA Paddle Spot Welding Machine
10 KVA Paddle Spot Welding Machine

10 KVA Paddle Spot Welding Machine

Price 36000.0 INR/ Piece

MOQ : 1 Piece

10 KVA Paddle Spot Welding Machine Specification

  • Rod Diameter
  • Up to 12 mm
  • Condition
  • New
  • Input Current
  • 30 A (Approx.)
  • Type
  • Paddle Spot Welding Machine
  • Power
  • 10 KVA
  • Welding Area
  • Spot
  • Dimension (L*W*H)
  • 900 mm x 500 mm x 1200 mm
  • Frequency
  • 50 Hz
  • Insulation Grade
  • Class F
  • Output Current
  • Up to 10,000 A
  • Arc Current
  • 10,000 A (Max)
  • Motor Type
  • Not Applicable Electromechanical Operation
  • Function
  • Spot Welding by Foot-Operated Paddle
  • Usage
  • Industrial, Sheet Metal Fabrication, Automotive Workshop
  • Efficiency
  • 85%
  • Cooling Method
  • Air Cooled / Optional Water Cooled Electrodes
  • Voltage
  • 220/415 V
  • Pulse Frequency
  • Single or Double Pulse
  • Weight
  • 110 kg (Approx.)
  • Material
  • Mild Steel (Body), Copper (Electrodes)
  • Cooling Water Inlet/Outlet
  • Optional
  • Duty Cycle
  • 50%
  • Foot Pedal Operation
  • Manual Mechanical
  • Welding Time Adjustment
  • 0.2 2 sec Adjustable
  • Cable Length
  • 2.5 meters
  • Noise Level
  • < 70 dB
  • Electrode Tip Size
  • 20 mm
  • Transformer Type
  • Copper Wound, Oil Cooled
  • Jaw Opening
  • Up to 60 mm
  • Max Welding Thickness
  • 2 mm + 2 mm (mild steel)
  • Throat Depth
  • 300 mm
  • Finish
  • Powder Coated
  • Control Panel
  • Digital / Analog Timer Control


10 KVA Paddle Spot Welding Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 6 Pieces Per Day
  • Delivery Time
  • 3 Hours
  • Sample Policy
  • Free samples are available
  • Main Domestic Market
  • Gujarat, All India


About 10 KVA Paddle Spot Welding Machine

Input Power
Up to 10 KVA
Usage/Application
Industrial
Type of Spot Welder
Pedal Operated Spot Welder
A 10 KVA spot welding machine is a powerful and efficient welding device designed for heavy-duty industrial applications. It is used to join two or more metal sheets together by applying pressure and heat to the weld area, creating a strong and durable bond. This machine is ideal for use in the automotive, manufacturing, and construction industries where high-capacity welding is required


Advanced Welding Precision

This paddle spot welding machine offers advanced control via a choice of digital or analog timer panels, allowing operators to set welding times between 0.2 and 2 seconds. The foot-operated paddle mechanism enables precise positioning and consistent weld quality with every job.


Built for Industrial Applications

Manufactured with a sturdy mild steel body and copper electrodes, the machine is ideal for heavy-duty use in automotive workshops and sheet metal factories. With an efficient copper-wound, oil-cooled transformer delivering up to 10,000 A of arc current, productivity is maximized while ensuring equipment longevity.


Flexible Operation and Cooling

Operators benefit from adjustable throat depth and jaw opening, accommodating a range of workpiece sizes. The machine can be fitted with optional water-cooled electrodes for high-load applications or operated with standard air cooling, ensuring reliability even during extended shifts.

FAQ's of 10 KVA PADDLE SPOT WELDING MACHINE:


Q: How does the manual foot pedal operation enhance the welding process?

A: The manual mechanical foot pedal allows operators to precisely control the welding spot and pressure, facilitating consistent, high-quality welds while keeping their hands free to position workpieces for efficiency and safety.

Q: What types and thicknesses of materials can be welded with this machine?

A: This machine is designed for spot welding mild steel sheets up to 2 mm + 2 mm thickness, making it suitable for various sheet metal and automotive fabrication tasks. It is best used for materials within its specified capacity for optimal weld strength and quality.

Q: When should the optional water cooling be used for the electrodes?

A: Water cooling should be used in high-volume or continuous applications to prevent electrode overheating, especially when welding thicker materials or operating the machine near its maximum duty cycle. This ensures longer electrode life and consistent weld quality.

Q: Where is this 10 KVA spot welding machine typically used?

A: It is commonly used in industrial environments such as sheet metal manufacturing plants, automotive workshops, and fabrication units. Its robust build and versatility make it ideal for demanding welding applications within these industries.

Q: What is the process for adjusting welding time and current?

A: Welding time can be set between 0.2 and 2 seconds through either a digital or analog control panel. The machine's output current is determined by its transformer and can reach up to 10,000 A, which is adjustable based on specific welding requirements.

Q: How does the powder-coated finish benefit the machine?

A: The durable powder-coated finish offers enhanced resistance against corrosion and environmental wear, ensuring a longer operational life even in challenging industrial conditions.

Q: What advantages does a copper-wound, oil-cooled transformer provide?

A: Copper-wound, oil-cooled transformers offer improved efficiency, stable output, and superior thermal management during prolonged welding sessions, contributing to the machine's overall performance and reliability.
