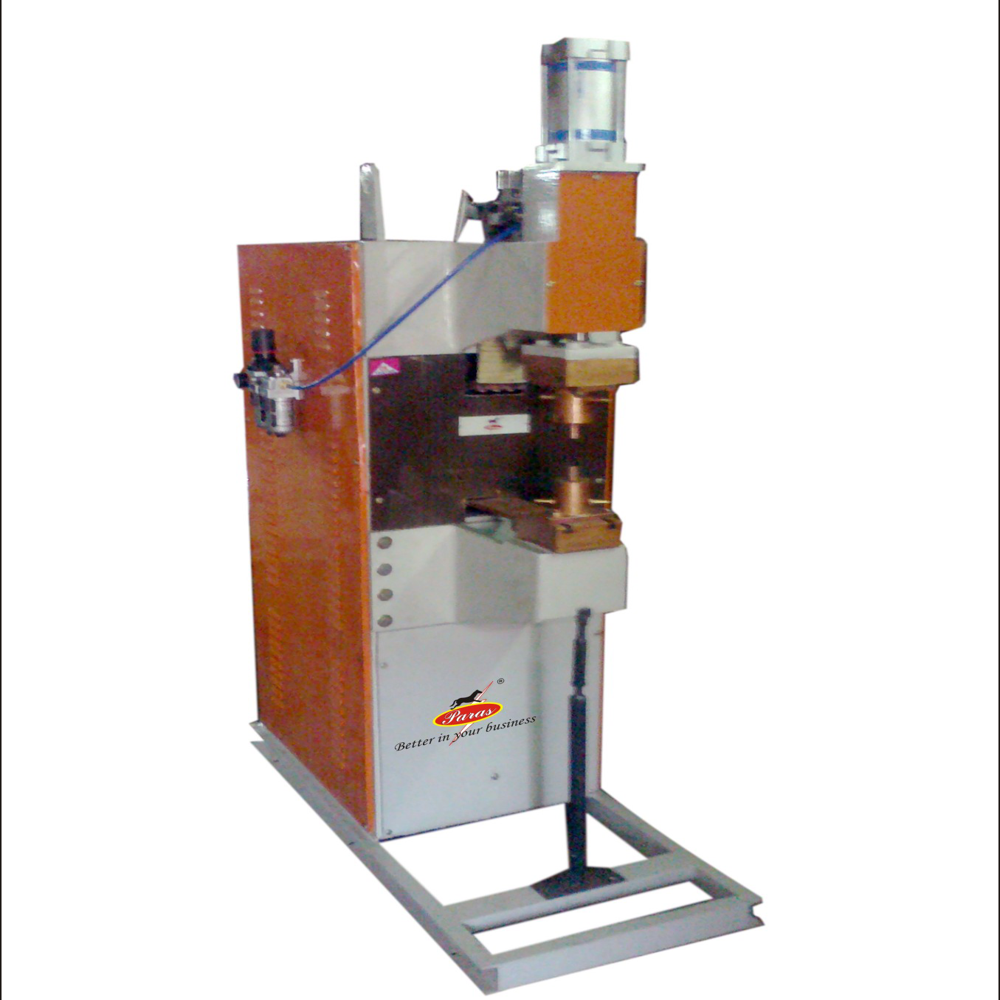

PARMO PROJECTION SPOT WELDING MACHINE

Name: PARMO PROJECTION SPOT WELDING MACHINE
Brand: PARMO WELDING MACHINES PRIVATE LIMITED
Price: 194400.0 INR
Availability: InStock

Price 194400.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

PARMO PROJECTION SPOT WELDING MACHINE Specification

Output Current
35000 A (Max)

Motor Type
Heavy Duty Induction Motor

Arc Current
Up to 35,000 A

Efficiency
High Efficiency (>85%)

Weight
Approx. 550 kg

Type
Projection Spot Welding Machine

Function
Projection and Spot Welding

Pulse Frequency
Single/Multiple as per requirement

Voltage
415 V AC

Input Current
100 A

Cooling Method
Water Cooled Transformer & Electrodes

Usage
Industrial Metal Joining

Rod Diameter
Up to 20 mm

Welding Area
Various Metal Sheets and Components

Dimension (L*W*H)
1400 x 800 x 1750 mm

Frequency
50/60 Hz

Insulation Grade
Class F

Power
50 kVA

Condition
New

Material
Mild Steel Frame

Electrode Material
Copper Alloy

Mounting Type
Floor Mounted

Pressure Adjustment
Pneumatic Foot Pedal

Phase
Three Phase

Welding Capacity
1.5 mm to 6 mm Sheets

Transformer Type
Epoxy Encapsulated Heavy Duty

Control Panel
Digital Timer & Display

Color
Industrial Green with Anti-corrosive Finish

Throat Depth
250 mm

Electrode Stroke
80 mm

Applicable Industry
Automobile, Sheet Metal, Electrical Hardware

Automation Grade
Semi Automatic

PARMO PROJECTION SPOT WELDING MACHINE Trade Information

Minimum Order Quantity
1 Unit

FOB Port
INDIA

Payment Terms
Cash in Advance (CID)

Supply Ability
1 Unit Per Day

Delivery Time
6 Hours

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
HAVY BOX PACKING

Main Export Market(s)
Asia

Main Domestic Market
All India

About PARMO PROJECTION SPOT WELDING MACHINE

50KVA Projection Spot Welding Machine Product Specifications

Dimension (L*W*H) 2*2*7 Foot (ft)
Input Current 230V & 440V
Frequency 60-50 Hertz (HZ)
Condition New
Weight 150 Kilograms (kg)
Output Current 18000 Ampere (amp)
Type WELDING MACHINE
Insulation Grade B
Power 440V , 2PHASE Volt (v)

50KVA Projection Spot Welding Machine Trade Information

FOB Port INDIA
Supply Ability 100 Unit Per Month
Delivery Time 2 Days
Main Export Market(s) Australia North America Asia Africa

Product Description

Projection Spot Welding Machines are perfect for the projection welding processes. Projection welding process is a variation of spot welding. These machines are widely used for the assembling of nuts as well as bolts. They are suited for the welding of shopping carts and steel wire. In addition, these are used for other industrial applications. Projection Spot Welding Machines are preferred for the welding of thick materials. These allow the deepest machine parts to fit within the machine throat.

High-Performance Projection Welding

The PARMO Projection Spot Welding Machine stands out for its semi-automatic operation and digital control panel, ensuring precise and repeatable welds. Its epoxy-encapsulated transformer and water-cooled system facilitate efficient cooling during intensive use. Weld a broad range of metal components thanks to its 1.5 mm to 6 mm welding capacity and robust output of up to 35,000 A arc current.

Versatile and Durable Engineering

Built with an industrial green anti-corrosive finish and a sturdy mild steel frame, this welding machine is designed for long-lasting performance in demanding environments. The machine features Class F insulation, a heavy-duty induction motor, and is floor-mounted for stability. Its pneumatic foot pedal allows easy pressure adjustment for varied applications.

FAQ's of PARMO PROJECTION SPOT WELDING MACHINE:

Q: How does the PARMO Projection Spot Welding Machine ensure consistent weld quality?

A: The machine uses a digital timer and display for precise control over welding cycles, and a pneumatic foot pedal for consistent pressure application. Its copper alloy electrodes and heavy-duty epoxy encapsulated transformer work together to achieve uniform welds across various metal sheet thicknesses.

Q: What types of materials and industries is this welding machine suitable for?

A: This projection spot welding machine is compatible with various metal sheets and components, particularly in the automobile, sheet metal, and electrical hardware industries. Its robust construction and welding capacity make it suitable for industrial metal joining applications.

Q: When should the water cooling system be used, and how does it benefit operation?

A: The water-cooled transformer and electrodes should be engaged during all welding operations, especially under high load or extended use. This prevents overheating, enhances machine efficiency, and prolongs component life, ensuring optimal performance throughout demanding tasks.

Q: Where can the PARMO Projection Spot Welding Machine be installed?

A: The machine is designed for floor mounting and is ideal for use in industrial workshop settings, such as automotive manufacturing plants, sheet metal fabrication shops, and electrical hardware assembly units.

Q: What is the process of adjusting the welding pressure?

A: Welding pressure is easily moderated using the pneumatic foot pedal provided. This system allows operators to quickly adjust force applied by the electrodes, catering to different sheet metal thicknesses and project requirements with minimal effort.

Q: What are the main advantages of the heavy-duty induction motor and epoxy encapsulated transformer?

A: The heavy-duty induction motor ensures reliable machine performance under intensive use, while the epoxy encapsulated transformer guards against moisture and dust, enhancing insulation and operational durability in challenging industrial environments.
